2000L Microbrewery equipment in USA

tiantai 2016-07-02

USA brewery equipment cases
                --- 2000L Microbrewery equipment in USA


Part 1:
Configuration of General introduction of this 2000 liter beer system


The brewhouse is three vessels which includes mash tun, lauter tun and kettle/whirlpool tun. One double size hot water tank and cold water tank comes with the brewhouse which are designed in one work plateform together with other vessels. A big grain hopper on top of mash tun can hold about 700kg malt. The whole brewhouse system is heated by gas burner. This directly fired device is designed for mash tun, kettle and hot water tank. Pipe manifold, hopback, vfd pump are standarded including. There is one sink tank on top of the plateform. It can supply hot water and cold water for washing and wort testing happens here too when flowing from lauter tun to kettle. Fermentation tanks and brite beer tanks are all single size.

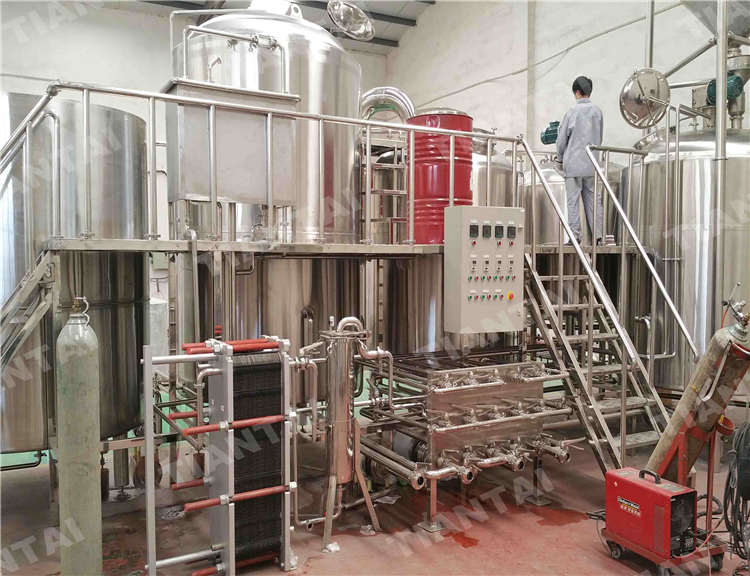

four vessels brewhouse directly fired 20bbl in usa


Part 2:
Brewery building construction in USA

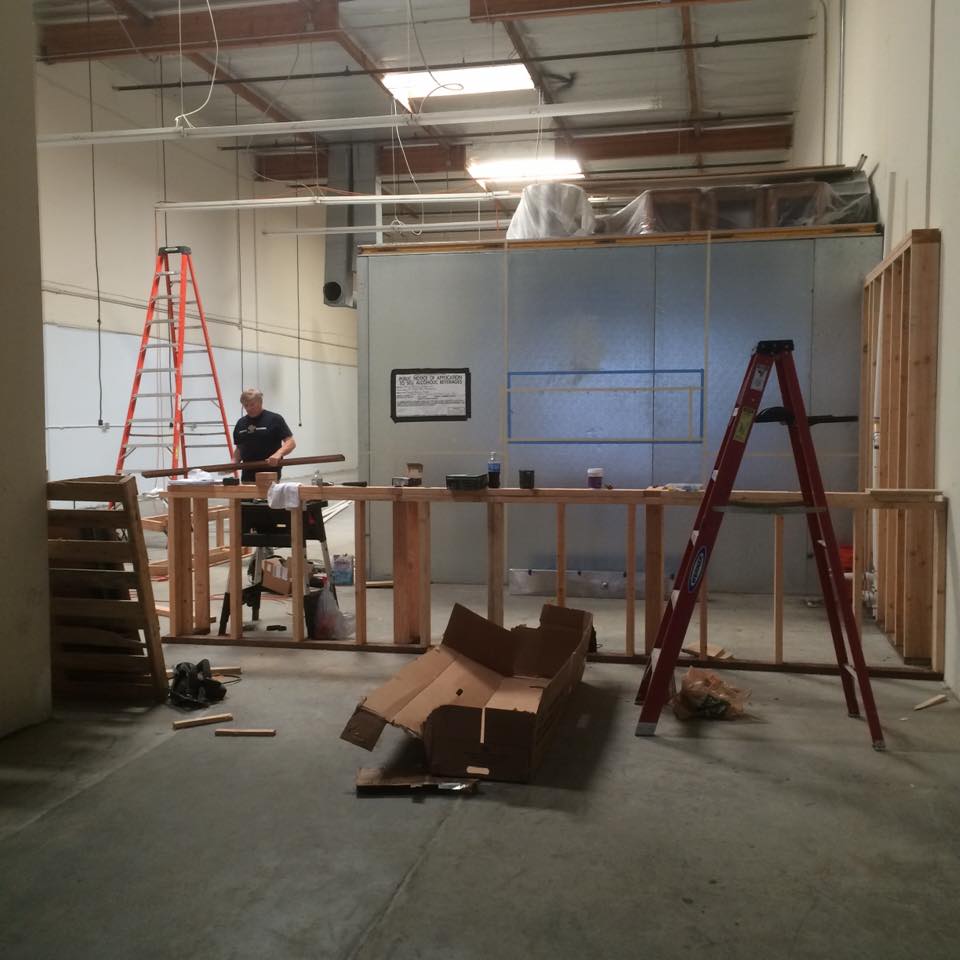

brewery building construction

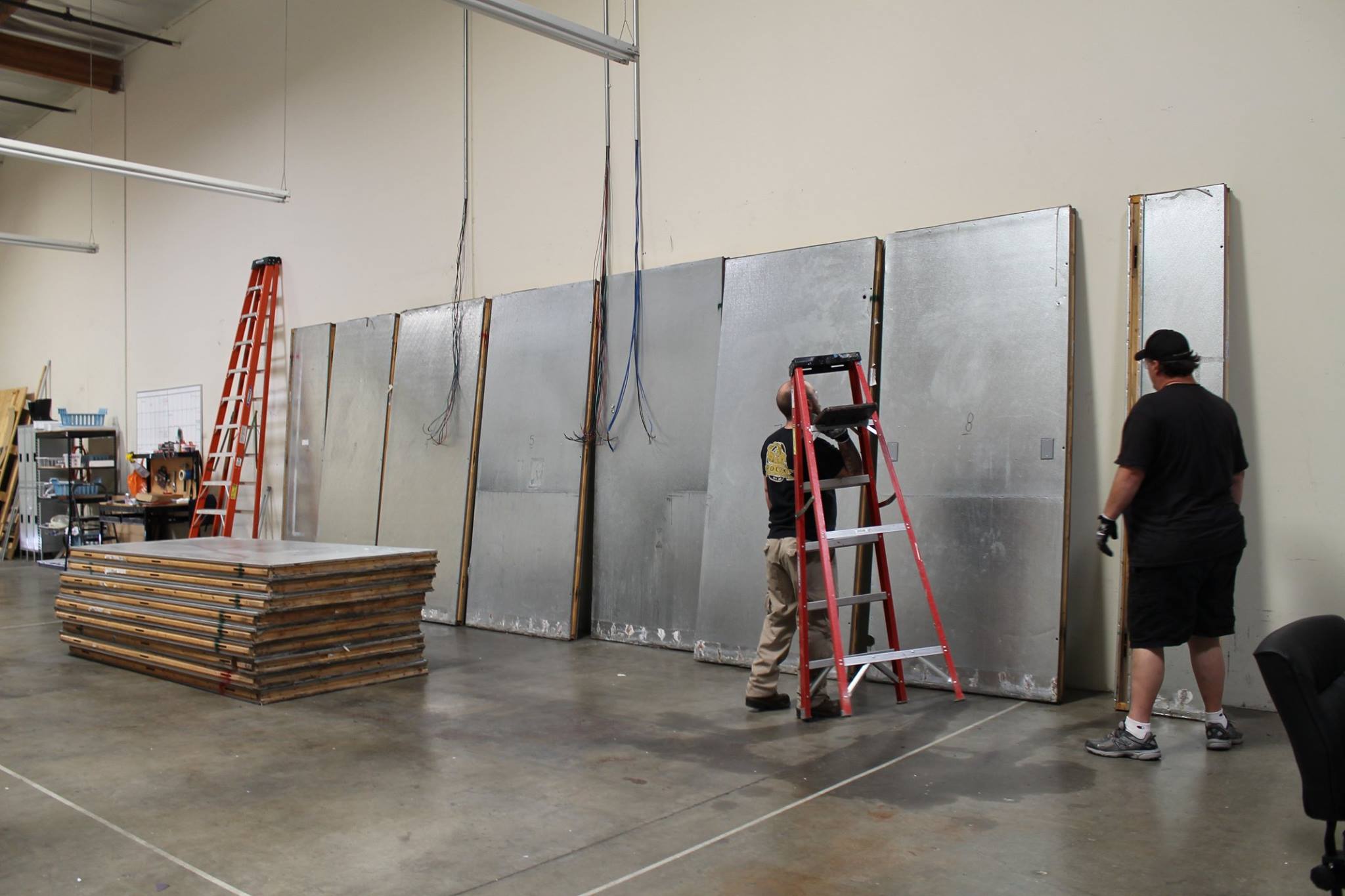

brewery building construction

Part 3:
Brewhouse pipe design

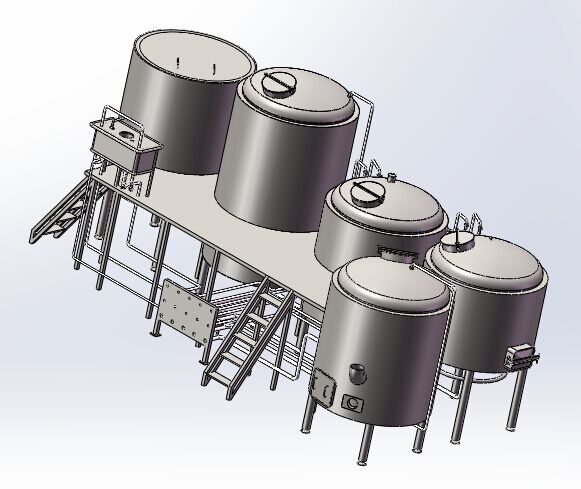

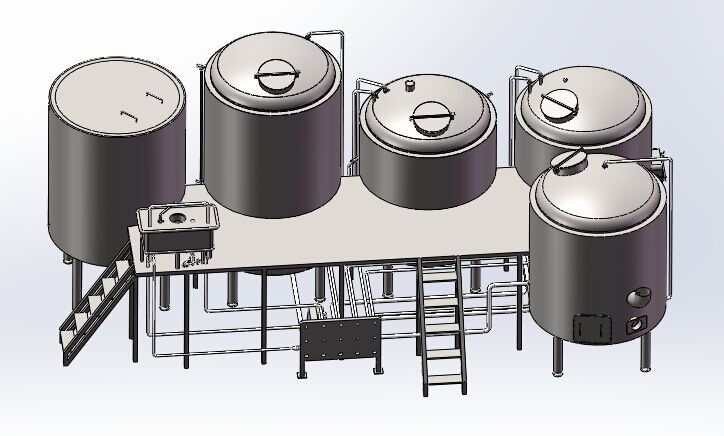

brewhouse in piping design 1

brewhouse in piping design


Part 3:
Brewery system installed in USA

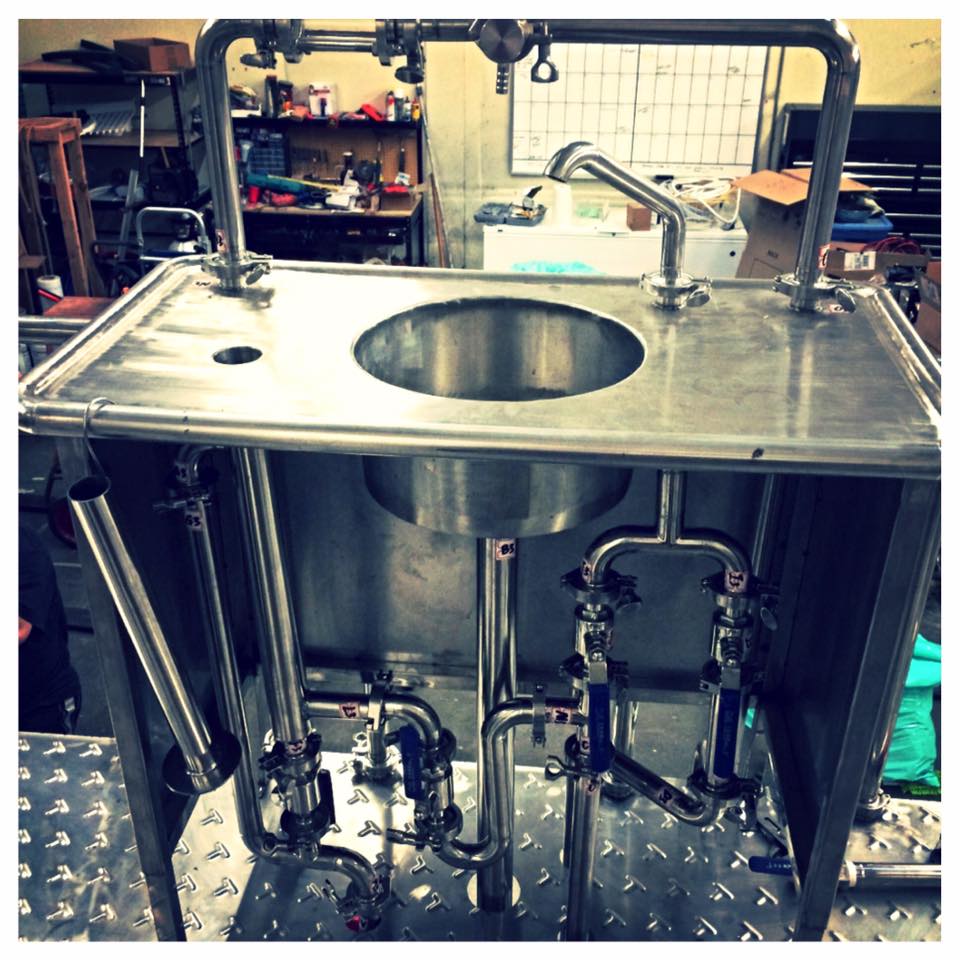

sink on brewhouse plateform

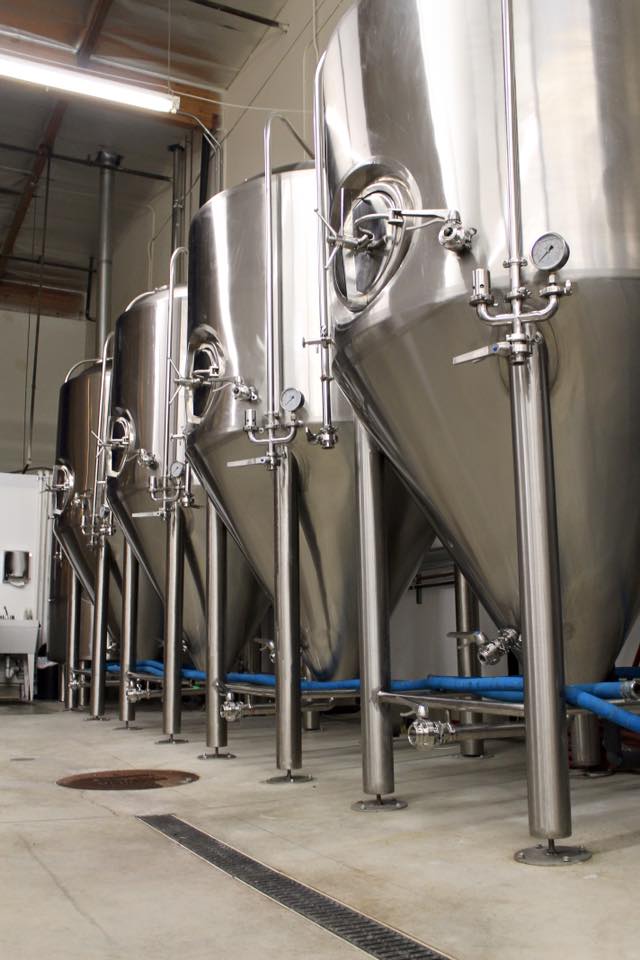

installation of the fermentation tanks

Part 4:
Beer coming after a long time hard work








microbrewery usa 2000 liter brewery equipment
