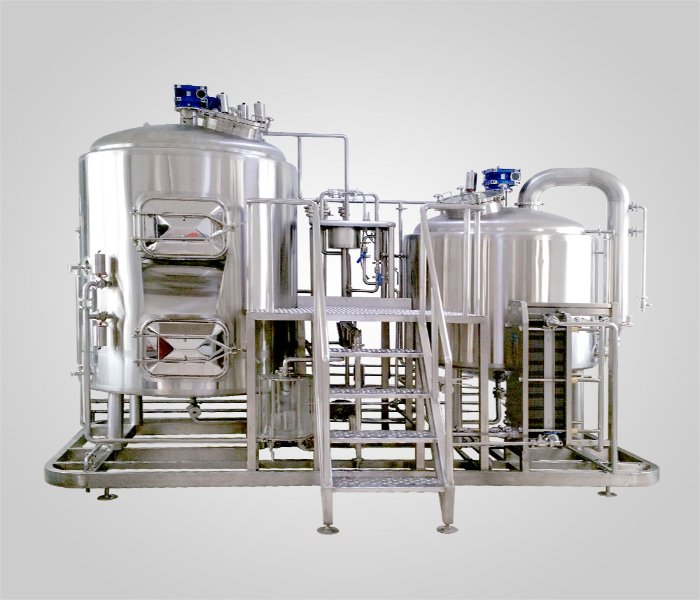

1000L Steam Mashing Equipment

Description
1000L Steam Mash Tun is a vessel used in the mashing process to convert the starches in crushed grains into sugars for fermentation. TBE Steam Mash Tuns are insulated to maintain a constant temperature. The Steam Mash Tun can be single-function or can also have a false bottom and spigot so that the sparging process can be done in the same vessel. Steam jacket design will allow The TBE systems are designed to do both decoction mashing and infusion mashing. The mashing tun/kettle is made out of stainless steel or copper.

Standard Configuration
Function: Grain mashing
Tank Capacity: 1000L (+25% Headspace minimum)
Dimension: 1360mmx2550mm
Interior Shell: SUS304 full welded; TH=3mm
Exterior Shell:SUS304 full welded; TH=2mm
100% TIG welding with pure argon gas shield
Interior Finish: Overall polishing to 0.4~0.6 um without dead corner
Insulation: Rock wool; TH=80mm
Heating: Steam
Steam Jacket: Dimple plate on bottom and side
Dished top and sloped bottom
Stainless steel top mounted manway
4pcs completely SUS304 heavy duty legs with leveling pad
Thermowell for high accuracy temperature sensor
