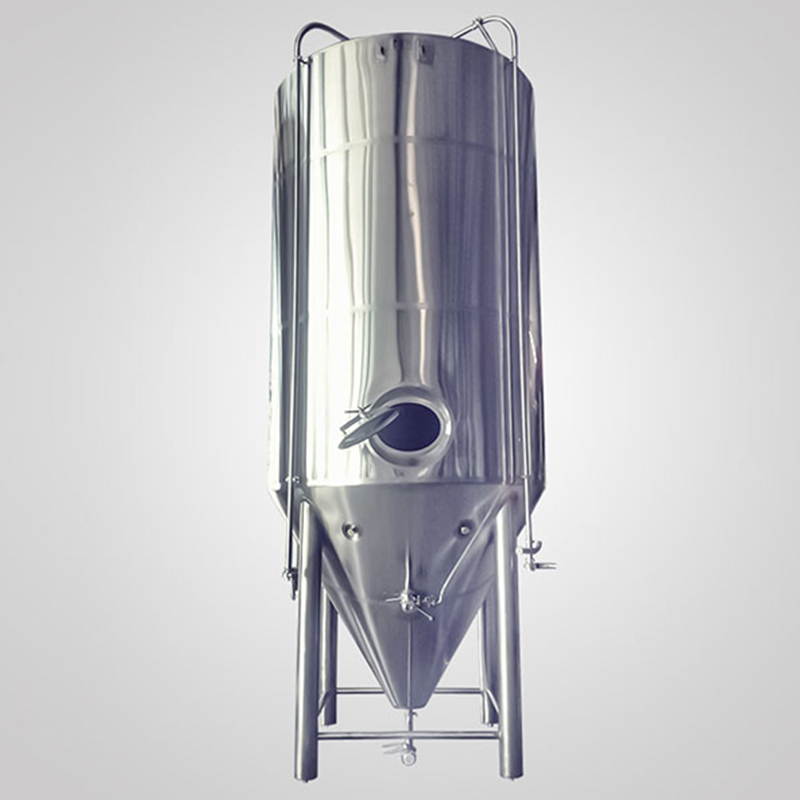

Fermentation tanks are specialized containers used to ferment beer, wine or other beverages. The process of converting wort into beer through the action of yeast. Tiantai microbrewery fermenters can be individually temperature controlled through glycol jackets and are mostly equipped with accessories such as pressure relief valve, CIP cleaning jet, sanitary sample valve, manhole,etc. Tiantai’s fermentation tanks range in size from 50L to 1500HL to meet your brewing needs.
Features:
Tank Capacity: 80BBL (+25% head space)
Dimensions: φ1760mmx3500mm
Material: SUS304/SUS316 stainless steel
Inner shell: 3mm
Outer shell: 2mm
Polished/Brushed/Mirror finish/Pickling passivation is optional
Top or side pressure manhole
Pit plate cooling jacket, cone and bottom cooling, polyurethane insulation
CIP arm and rotating CIP spray ball
Dry hop port on tank top
60 degree cone bottom
Four legs, adjustable feet, optional anti-vibration
Sanitary thermometer sleeve
Cone conveying arm
Rotating rack arm
Complete valves, accessories and all par
Details：
