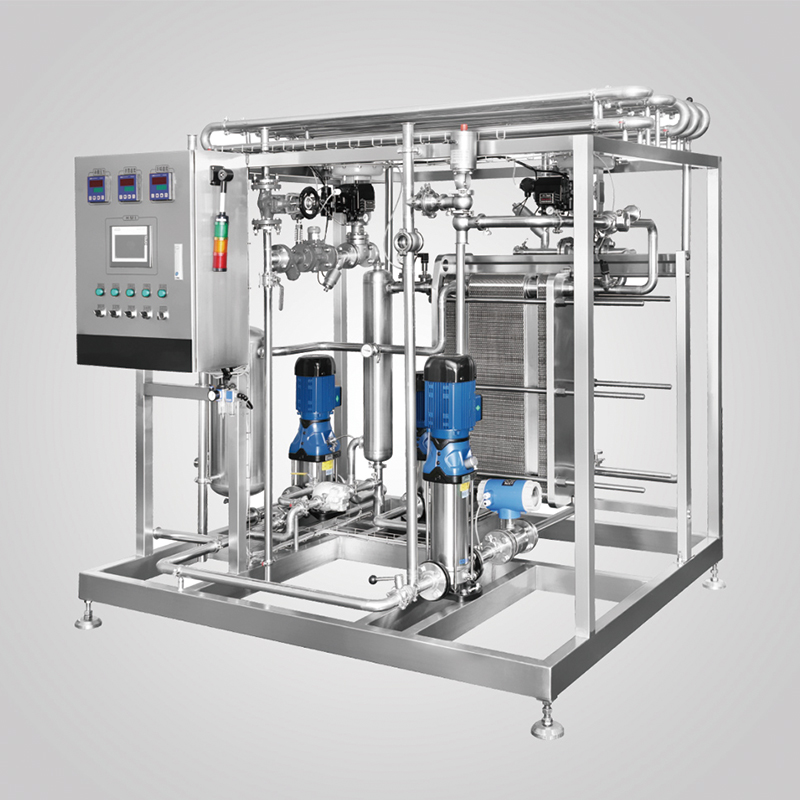

Flash Pasteurizer is used in a brewery to pasteurize the beer and keep the beer taste as possible. The whole system is automatic deigned by exact temperature and flow control. The whole system is automatic deigned by exact temperature and flow control.
Specification:
Function:Pasteurize Beer
Capacity: 5t/h
Material:SUS304
Steam Pressure: ≥2.5bar
Ice water flow rate: 15t/h(-2~1℃)
Compressed air pressure:≥6bar
Steam consumption:60kg/h
Ice water energy consumption: 30000kcal/h
Power:6.6KW
50L hot water tank
Three stages SUS304 plate heat exchanger
SIMENS PLC and HMI controller
Complete valves, fittings and all parts
Technical process: 1-4℃→72℃ (hold 30sec)→2-4℃(Can be Customized)
Dimension: 1800×2000×2000mm
