Wiring the temperature probes and solenoids

Mar 11, 2017
helen

7998
temperature probe

Do you have any info on wiring the temperature probes and solenoids? If you do, please send.
What about connections to the control panels?

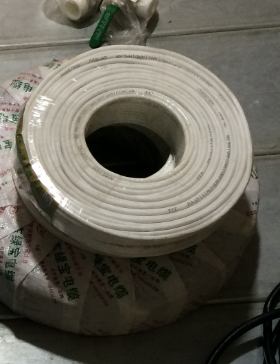

First, please find the white singal wire, see picture

There are three wires inside_Red, Black, Yellow color wire

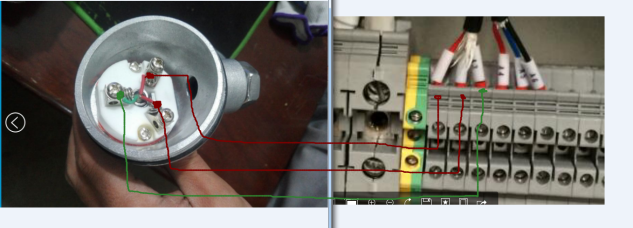

For temperature probes, please open top box, there are three wires_red, red green.
Connection as below:
white singal wire Thermowell wire
Red---------------------------------Red
Black-------------------------------Red
Yellow-------------------------------Green
Please connect as above and check the condition of temp display, if the temp display turns “HHHHH”, then change Green wire location with first red wire.

For solenoids, you can see two black color wires: connect the two wires to red and black wire on white singinal wire.

There is no particular connection sequence, but please make red color on same side.
The wire, which is connected to earth wire, do not need to connect.

Edited by Miya
Sales manager
