Mastering Beer Brewing Equipment Piping: Design and Installation Tips

In the realm of modern beer production, intricate biochemical processes rely heavily on a well-designed network of pipelines. These pipelines serve as the vital arteries of the brewery, transporting crucial materials like water, steam, and gases between various equipment stations. Just as blood vessels sustain life, pipelines ensure the smooth flow and functionality of the brewing process.



Importance of Pipeline Design



The design and layout of pipelines within a brewery are pivotal from both operational and aesthetic standpoints. Efficient pipeline design not only enhances production efficiency but also influences factors like accessibility, cleanliness, and overall workspace organization. It’s akin to crafting a blueprint that dictates how smoothly operations will run.



Key Considerations in Workshop Piping Design



1.Integration with Workshop Layout: The primary goal of workshop piping design is to seamlessly integrate equipment into the production process. Each piece of equipment, from fermenters to boilers, must be strategically connected to ensure a continuous flow of materials. This involves meticulous planning of pipe routes, valve placements, and supporting structures.



2.Technical Requirements: Piping design isn’t just about connecting points; it’s about meeting stringent technical standards. Factors such as material toxicity, corrosion resistance, and microbial hygiene play crucial roles. Compliance with these standards ensures the safety and quality of the final product.



3.Guiding Principles: Design decisions are guided by detailed process flow charts, construction drawings, and specific brewery layout plans. These documents provide the framework for determining the optimal path for each pipeline, ensuring that it contributes effectively to the overall brewery operation.



Challenges in Piping Setup



The installation of brewery pipelines is a labor-intensive endeavor that demands meticulous attention to detail. Each pipe fitting, valve, and instrument must be carefully positioned to maintain both functionality and aesthetic harmony within the workshop space. This meticulous approach ensures that the brewery operates smoothly and meets all regulatory requirements.



The design and installation of brewery piping systems are fundamental to the success of modern beer production. By adhering to rigorous design principles and considering the complex interplay of materials and processes, brewers can create a robust infrastructure that supports efficient production and maintains high standards of product quality and safety. Mastering the art of brewery piping is not just about connecting tubes; it’s about orchestrating a symphony of processes that result in the perfect pint.



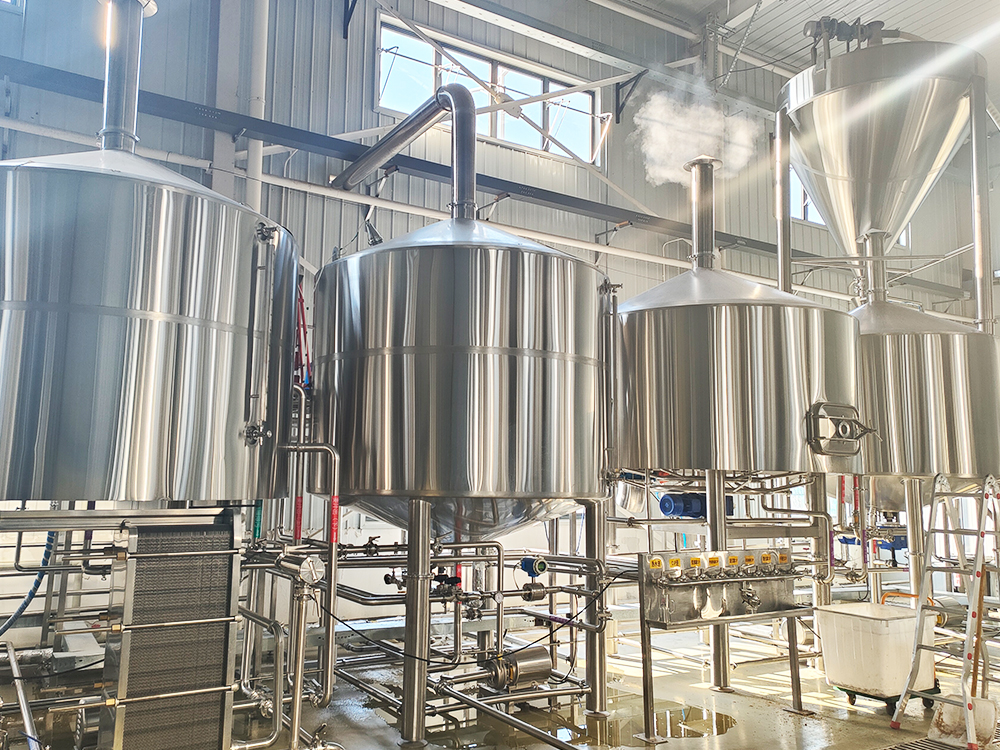

beer brewing equipment piping,piping design,brewery equipment



When designing workshop pipelines, meticulous planning is crucial not only for functionality but also for operational efficiency and safety. Proper layout not only enhances the aesthetic appeal of the workshop but also minimizes operational disruptions and maintenance costs.



Key Principles for Workshop Piping Design



1.Meeting Production Needs: The layout should align closely with production requirements, ensuring seamless operation and facilitating easy maintenance and management.



2.Optimal Pipe Length and Valve Placement: Minimize pipe lengths and avoid excessive valves to streamline operations and reduce the risk of contamination.



3.Open Wire Installation: Unlike residential setups, workshop pipelines are typically laid with open wires, offering lower installation costs, easier maintenance, and improved operational visibility.



4.Row Installation Along Walls or Pillars: Aligning pipelines in rows along walls or pillars optimizes space utilization and ensures clear, unobstructed pathways within the workshop.



5.Elevation Considerations: Elevations should be carefully planned to avoid hindering vehicle and pedestrian traffic, with clearances specified to accommodate different types of pipelines and equipment.



6.Layered Arrangement: Arrange pipes by size and type to optimize space and operational efficiency, with larger pipes and non-corrosive mediums typically placed higher.



7.Placement According to Medium: Consider the nature of the medium (e.g., corrosive or thermal) when determining the location of pipes against walls or outside for easier maintenance access.



8.Passages Through Floors and Walls: Plan ahead with fixed sleeves or holes for pipes passing through floors or walls, ensuring no structural interference.



9.Preventing Blockages: Employ strategies like adjusting pipe diameters, adding valves near equipment outlets, or connecting water or compressed air pipes to prevent blockages.



10.Avoiding Sensitive Areas: Pipes should steer clear of motors, switchboards, and areas prone to mechanical or electrical interference.



11.Flange and Corrosive Media: Maintain distance and lower positions for pipelines carrying corrosive media to prevent accidents or contamination.



12.Valve and Instrument Accessibility: Ensure valves and local instruments are easily accessible for operation and inspection, with appropriate placement heights.



13.Outdoor Pipeline Direction: Align outdoor pipelines parallel to main factory roads and buildings to maintain aesthetic appeal and avoid obstruction.



14.Preventing Corrosion: Use isolation methods like painting, insulation, or stainless steel plates to prevent electrochemical corrosion when pipes contact steel brackets.



15.Choosing Pipe Connections: Prefer welded or flanged connections over threaded ones for durability and reliability, especially in critical operations.



16.Underground Pipelines: Buried pipes, especially water and wastewater lines, should be installed below the frost line to prevent freezing and ensure operational continuity.



17.Eliminating Dead Corners: Design layouts to minimize dead corners where sterilization might be compromised, ensuring thorough and effective cleaning processes.



beer brewing equipment piping,piping design,brewery equipment
Implementing these principles ensures that workshop piping design not only meets functional requirements but also enhances operational efficiency and safety standards. By adhering to these guidelines, workshops can optimize their layout for maximum productivity and longevity of equipment.
