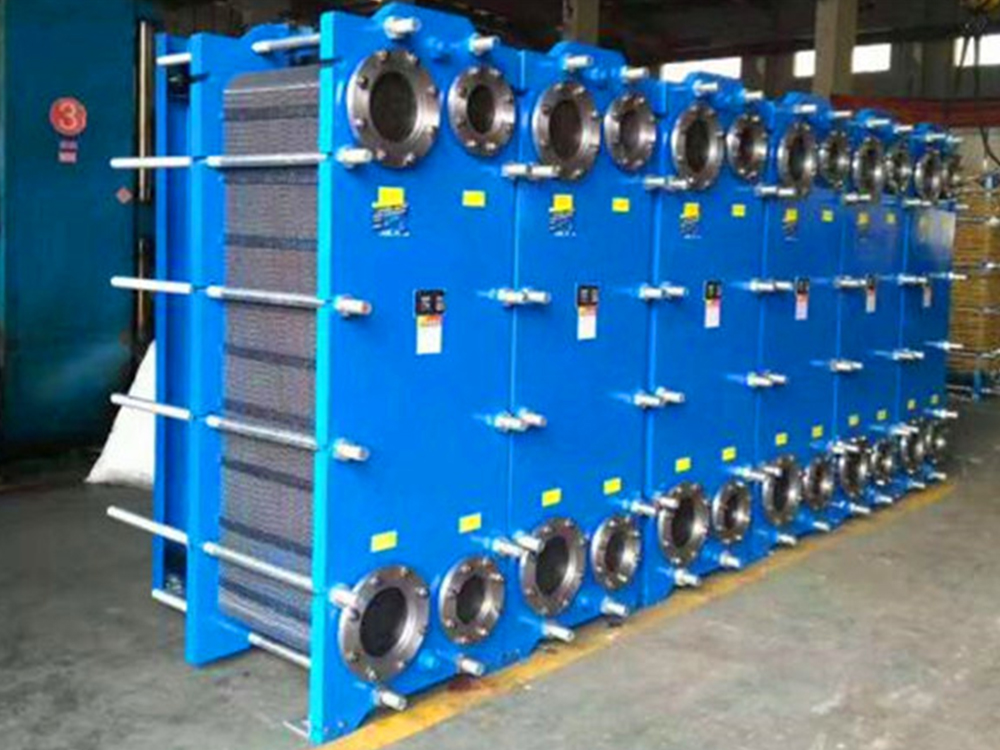

Plate heat exchangers (PHEs) have become the go-to choice for industries like breweries due to their efficiency and compact design. Unlike traditional shell and tube heat exchangers, PHEs offer higher heat exchange efficiency and require less space. However, to ensure optimal performance and longevity, proper cleaning and maintenance are crucial.
Cleaning Methods for Plate Heat Exchangers
There are primarily two methods for cleaning plate heat exchangers: Cleaning in Place (CIP) and Manual Cleaning.
Cleaning in Place (CIP)
CIP involves circulating a chemical solution through the PHE to dissolve and remove any fouling or deposits. This method is highly efficient as it eliminates the need to disassemble the heat exchanger, thereby reducing labor and downtime. It’s particularly effective for removing lime deposits and organic matter buildup.
The CIP process typically includes several steps:
- Alkaline Cleaning: Removes organic residues effectively.
- Rinsing: Uses high-flow water to clear debris and residual chemicals.
- Pickling: Dissolves and softens stubborn deposits.
- Final Rinse: Ensures the heat exchanger is thoroughly cleaned with clean water.
Advantages of CIP Cleaning:
- Efficiency: Faster cleaning process compared to manual methods.
- Reduced Labor: Requires less manual effort.
- Comprehensive Cleaning: Reaches areas inaccessible to manual cleaning.
- Preservation: Passivates surfaces to minimize corrosion.
Manual Cleaning

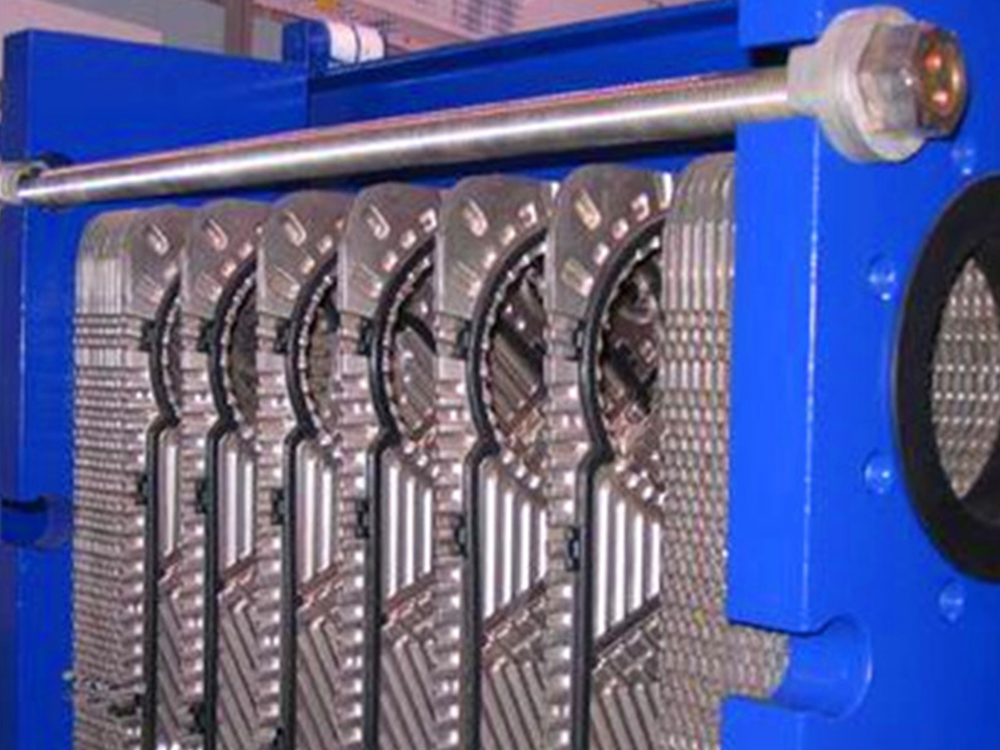

Manual cleaning involves physically removing the plates from the frame and cleaning them individually. This method is necessary in cases where CIP isn’t feasible due to equipment constraints or specific fouling types. While more labor-intensive, manual cleaning allows for thorough inspection and targeted cleaning of plates.
Maintenance Tips for Plate Heat Exchangers
To maintain your PHE in top condition and extend its lifespan, follow these essential tips:
- Operational Conditions: Ensure operating conditions (temperature and flow rates) match design specifications.
- Ventilation: Vent the heat exchanger carefully during start-up to avoid pressure fluctuations.
- Filtration: Use upstream filters to prevent particulate fouling.
- Monitoring: Regularly monitor temperature, and pressure, and look for leaks.
- Bolt Maintenance: Keep fastening bolts clean and lubricated.
- Condition Monitoring: Use advanced technologies to monitor performance and detect issues early.
- Spare Parts: Keep original spare parts on hand and follow storage guidelines.
- Storage: If the PHE is out of service, flush it with fresh water and protect it from environmental elements.
- Avoid UV Exposure: Shield the heat exchanger from direct sunlight and ozone exposure.
- Regular Inspections: Schedule periodic inspections to identify and address any potential issues.
By adhering to these guidelines, you can maximize the efficiency and lifespan of your plate heat exchanger, ensuring optimal performance for your industrial processes.
This comprehensive approach to cleaning and maintenance will not only enhance the efficiency of your plate heat exchanger but also minimize downtime and operational costs over its lifetime.
