kettle Tun Equipment

The kettle tun equipment commonly used in breweries includes internal heating kettle tun, external heating kettle tun, low pressure kettle tun and continuous or flowing kettle tun devices. The capacity of the kettle tun should not be lower than 9hL/100kg. If the designed capacity is too small, the ideal boiling effect cannot be achieved, and the wort will easily overflow. Tiantai equipment design provides internal heating kettle tun.

Internally heated kettle tun

At present, most kettle tun use internal heaters

1. Features

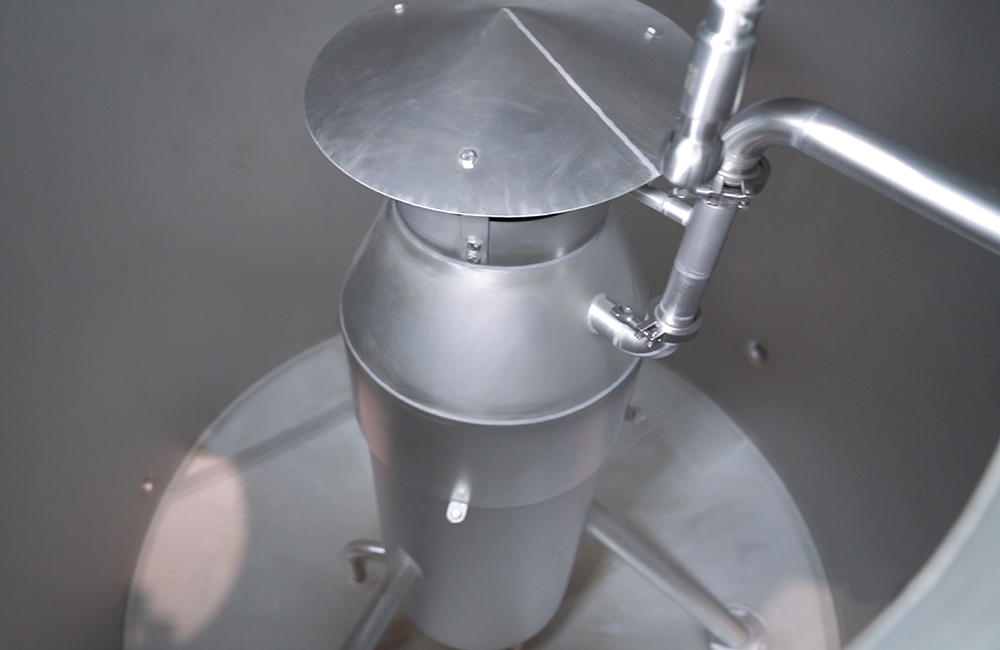

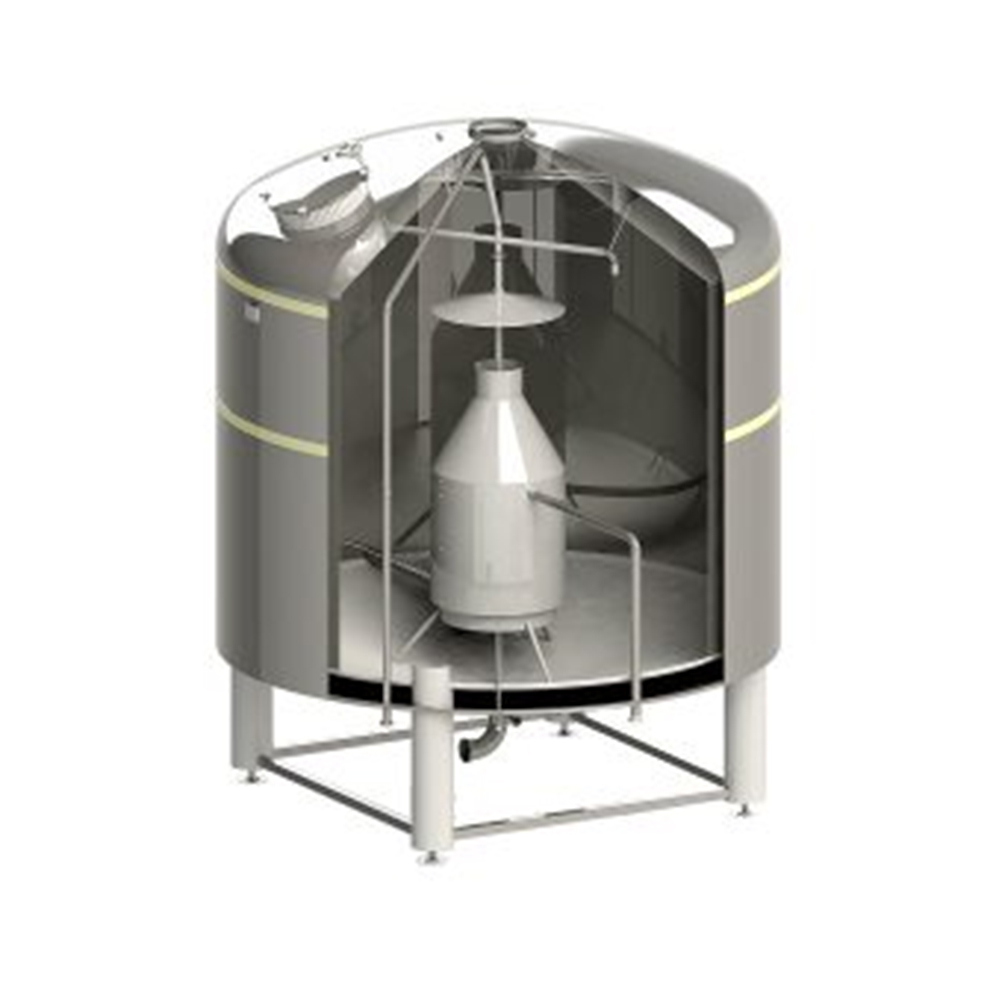

The feature of the internally heated kettle tun is that the wort heater is vertically installed in the pot, and the heater is a tubular heater. When the wort is boiling, the wort passes through the tubes of the heater from bottom to top and heats up to boil. An umbrella-shaped spill-proof cover is installed above the heater, so that the rising wort can be distributed to the surroundings, and at the same time, the formation of foam can be avoided, so that the wort can be heated evenly.

2. Technical advantages

(1) Less equipment investment, no maintenance, no wear and tear

(2) Low power consumption

(3) Heat radiation loss is small

(4) Boiling temperature and evaporation rate can be adjusted

(5) Low pressure saturated steam (0.1MPa) can be used for heating

(6) The flow rate of wort in the inner heater tube bundle is low

(7) The equipment is simple and does not require external heaters and stirrers

3. Disadvantages

 (1) It is difficult to clean the internal heater. After a certain batch is produced, a large cleaning is required, which will delay production.

 (2) Because the flow rate of wort in the tube bundle is low, if the steam pressure is not well controlled and the steam temperature is too high, local overheating of the wort will occur, resulting in darker color and poor taste of the wort, which will affect the finished beer the quality of.

Compared with the jacketed steam kettle tun, the internal heating kettle tun has obvious advantages. Therefore, many old-fashioned kettle tun have been transformed into internally heated kettle tun.
