Characteristics of fermentation tanks for beer equipment

Apr 21, 2022
yanan

7998
stainless steel brewery tanks brewery tanks for sale brewery tanks

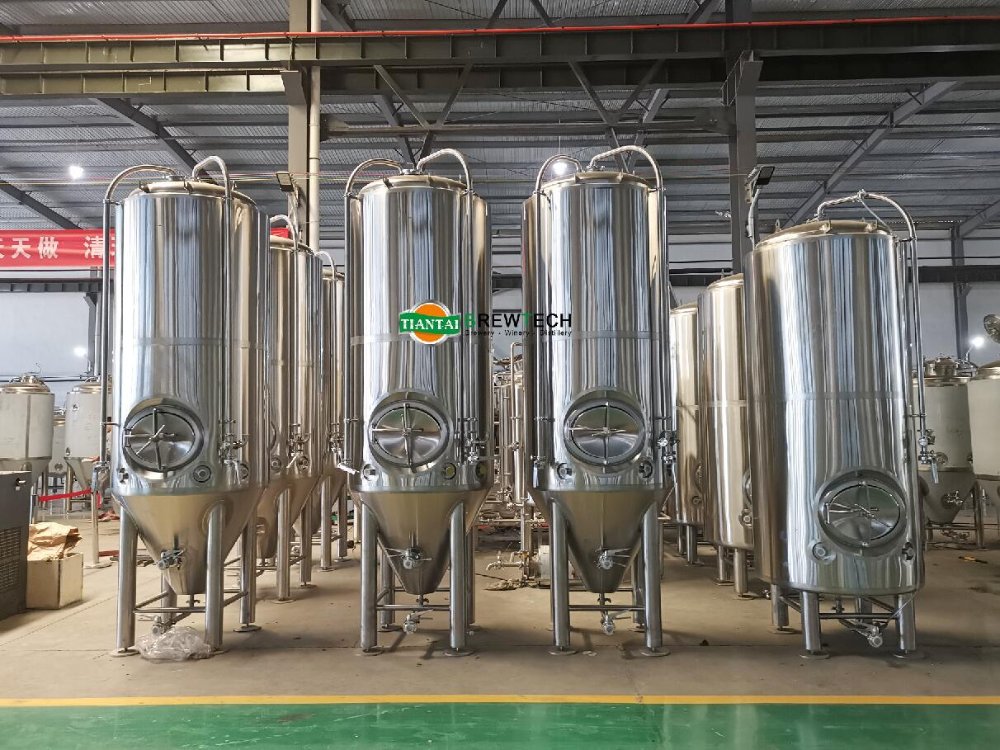

Characteristics of fermentation tanks for beer equipment

Fermentation storage tank is a vital as well as vital part of beer devices. Allow's take a look at some of the primary qualities of fermentation containers.

The leading part of the storage tank. The top of the container is also geared up with anti-vacuum shutoffs, overpressure valves and pressure Sensors, etc, inside the tank are equipped with cleaning tools, as well as platforms and channels for storage tank leading operation are additionally installed.

Tank body component. The container is a cylinder as well as is the almost all of the container. The elevation of the fermenter depends upon the diameter and height of the cyndrical tube. Because of the big size of the container and also the low pressure resistance, the diameter of the cone-shaped tank generally does not surpass 6m. The handling of the container is easier than the top of the container. The beyond the tank is utilized to install cooling gadgets as well as insulation layers, as well as a certain position is mounted to set up temperature level as well as stress measuring aspects.

The included angle of the cone bottom is generally 60 ° -80 °, and also there are additionally 90 ° -110 °, however this is primarily utilized for large-capacity fermentation storage tanks. The elevation of the cone bottom of the fermentation storage tank is associated to the consisted of angle. Normally, the elevation of the cone base of the tank accounts for around 1/4 of the total height, and also must not exceed 1/3.

stainless steel brewery tanks brewery tanks for sale brewery tanks

stainless steel brewery tanks brewery tanks for sale brewery tanks

Additionally, the ratio of the size to the elevation of the tank is usually 1: 2 to 1: 4, and the total elevation is ideally not more than 6m, so as not to cause strong convection and influence the sedimentation of yeast and coagulum. Typically, the working stress of the fermentation container is controlled at 0.2MPa-0.3 MPa. The inner wall surface of the tank should be smooth and also level, and the stainless-steel should be polished, with no uneven surface and no granular outcroppings.

The top of the tank is also geared up with anti-vacuum shutoffs, overpressure valves as well as stress Sensors, etc, inside the storage tank are furnished with washing tools, as well as systems and also networks for container top operation are likewise mounted.

The tank is a cyndrical tube and also is the main component of the storage tank. Due to the big diameter of the tank and also the low stress resistance, the size of the conelike tank generally does not go beyond 6m. The processing of the tank is easier than the top of the tank.

If you are planning to open a brewery. TIANTAI BrewTech could help you answer your questions and supply the brewery equipment system. We supply 2-150bbl complete beer brewing brewery equipment system including malt milling equipment, brewhouse equipment, fermenters, brite beer tanks, beer bottling machine,beer canning machine, beer kegging machine, hopping machine, yeast propagation equipment. We also supply all auxiliary brewery systems like steam heating pipe and valves, water treatment, filter, air compressor etc. Everything in brewery are all in our list.
