Beer brewing lauter tun and false bottom characteristic

The lauter tun is an important part of the beer brewing system. A false bottom is installed. The  plate supports the grain trough and the wort is filtered.

In the past few decades, the structure and working methods of the lauter tun have been improved in the craft brewery. Tiantai combined with many years of customer experience will introduce the characteristics of the new lauter tun.The false bottom structure of the lauter tun has been improved, and the opening rate has been increased from the traditional 12% to 15-18%, which shortens the filtration time.

A nozzle for cleaning the filter tank is installed between the false bottom and the bottom of the tank, which can thoroughly clean the tank. The number of backwash water pipes is increased from 1 to 1.5 to 1.8. The impact of CIP cleaning is strong, making the cleaning thoroughly clean.

The density of wort filtering pipes has been increased from 1.1 to 1.2 per m21.

Every 3~4 wort filter tubes are set as a group, and they are controlled separately, and the flow is controlled by the online instrument to avoid the hardening of the grains and the appearance of vacuum.

Use the balance tank to control the level of the filtered wort and the operation of the wort pump, and send the wort to the boiling pot or the wort storage tank smoothly.

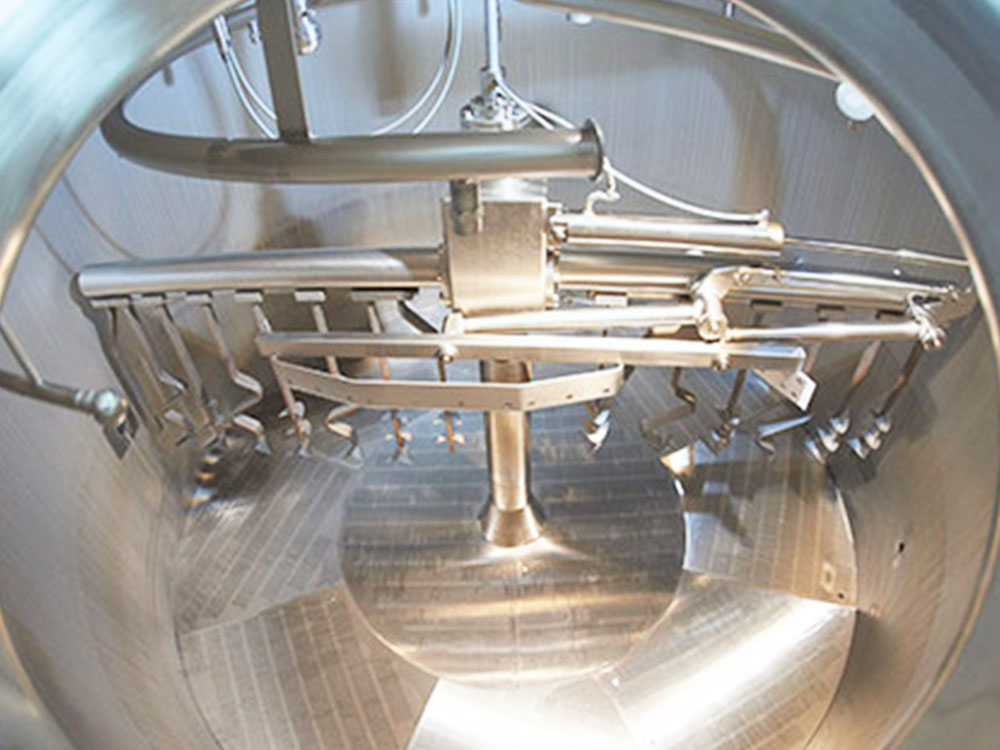

The cultivator has increased from double arms to 4-6 arms, and the tillage knives have been increased from 0.9/m2 to 1.1-1.2/m2. Different tillage arms have different types of stirrer knives, and the tillage can reach vertical and horizontal levels. Operation methods such as lifting and lowering can realize continuous tillage and washing of lees, keeping the turbidity of wort below 10 EBC units, and making the lees faster.

In order to control the oxidation of the filtration process, the mash enters from the bottom, and the return wort enters from the side under the liquid surface. At the same time, the entire filter tank has good airtightness and can be filled with CO2 or N2 gas as a protective layer.

The thickness of the wheat grains layer can be increased to 28～38cm, and the filtration efficiency can be improved.

The amount of outflow of wort and the amount of lees water can be measured, and the pH and temperature of the lees water can be automatically adjusted.

If you are planning to open a brewery. TIANTAI BrewTech could help you answer your questions and supply the brewery equipment system. We supply 2-150bbl complete beer brewing brewery equipment system including malt milling equipment, brewhouse equipment, fermenters, brite beer tanks, beer bottling machine,beer canning machine, beer kegging machine, hopping machine, yeast propagation equipment. We also supply all auxiliary brewery systems like steam heating pipe and valves, water treatment, filter, air compressor etc. Everything in brewery are all in our list.
