1000L Distillery Equipment

Introduction

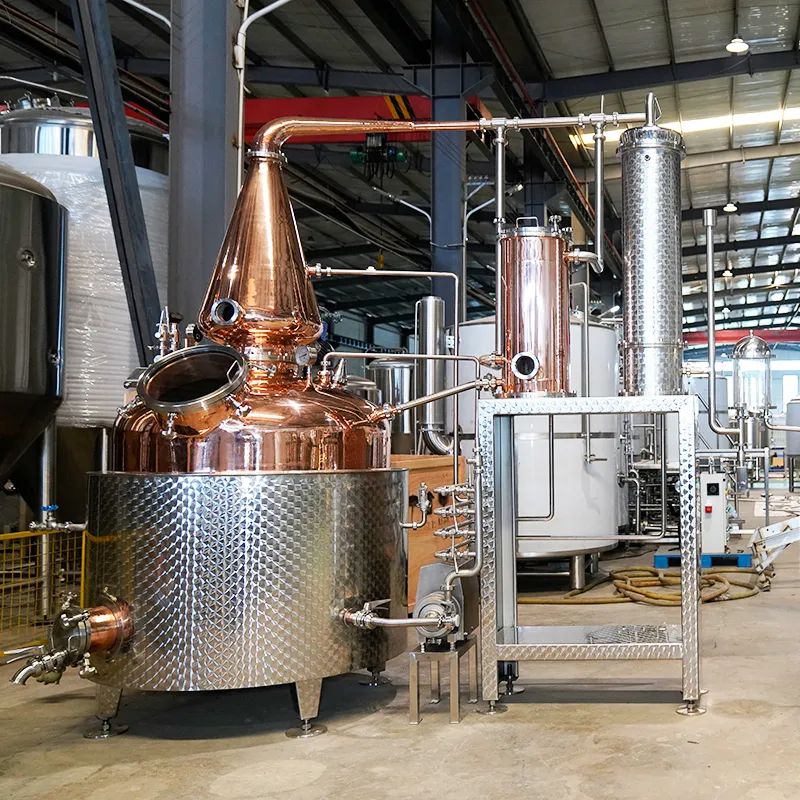

The 1000l distillery equipment consists of a pot made of copper, glass, and copper columns combined, a partial condenser, and a condenser, which are heated using steam or electricity. The distillery equipment is a single unit designed to meet and exceed the needs of start-up distilleries and can be used as advanced test distillery equipment for mature distilleries of whisky, gin, fruit brandy, rum, wine spirits. Tiantai  provides a complete distillation process system including mash tun, fermentation tank, spirit storage tanks, wine tanks, etc.

Specification

The inner tank is made of TP2 copper and the wall thickness is 3mm

Heating method: interlayer steam heating

Copper head

Copper material separator

Tower column: sight glasses and trays

Stainless steel gold blue and stainless steel condenser

Stainless steel bracket with collection bucket

CIP cleaning pump

Configuration

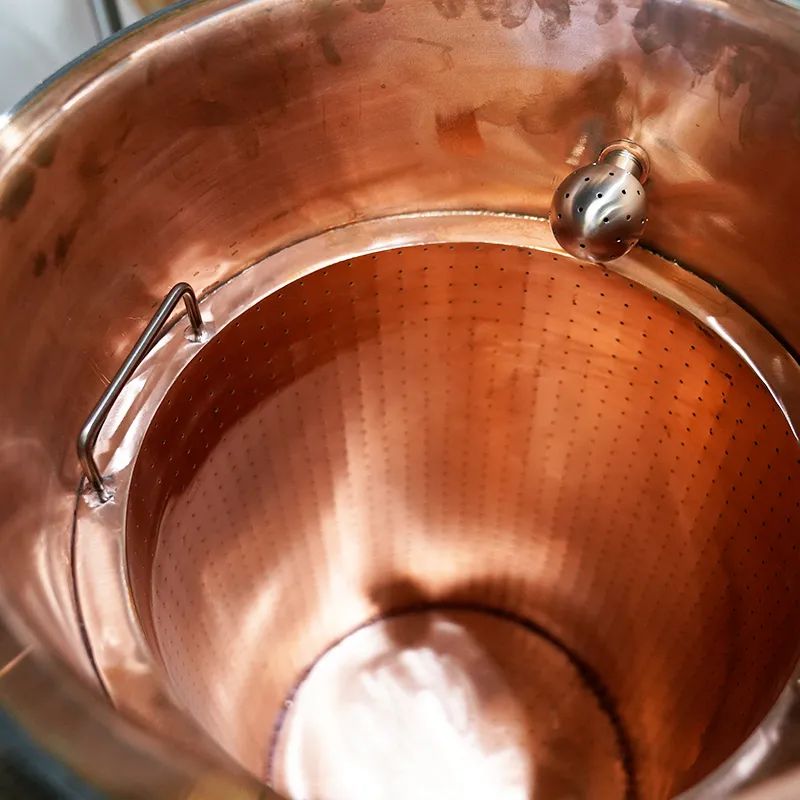

1. Still Pot

Actual volume 1250L, Working volume 1000L

Inner pot: red copper T2, thickness: 3m

Dished head: red copper T2, thickness: 3m

Jacketed: SUS304, thickness: 4mm

Insulated: 50mm, PU

Stirring motor: explosion-proof mixer 0.37KW/46rpm(EX)

Outer shell: SUS304, thickness: 2mm

Temperature control: PT100

Heating method: 2*10KW electric heating rods

With glass manhole, CIP cleaning ball, safety valve, sight light, steam trap, etc.

2. Still Column

Material: red copper T2, thickness: 3mm

Red copper tubes, each tray has bubble caps, and with CIP cleaning balls, Drain valve, thermometer

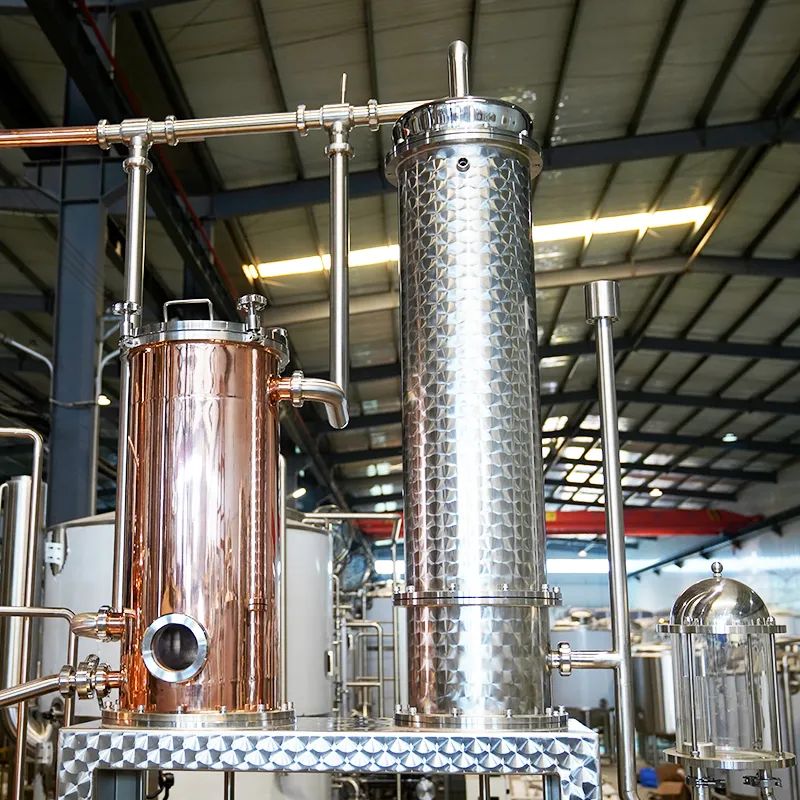

3. Dephlegmator

Material: Red copper T2, thickness:3mm

With cooling water inlet and outlet

4. Gin Basket

Material: SUS304

Size: 4″

Features: you can put plant spices, fumigate scented wine, such as gin

5. Condenser

Material: SUS304, thickness: 3mm

Size: 6″, 900mm

With cooling water inlet and outlet

6. CIP Pump

Category: Sanitary centrifugal pump

Power: 0.75KW (explosion-proof)

Flow rate: 3T/H, head 24m

Working medium: water

Working temperature: 10-100℃

Features: Can clean the distillation kettle, copper head, column, gin basket

Material: SUS304, thickness: 2mm

7. Multifunctional lockers

Control Box

Material: SUS304

Sight light, motor, CIP pump

If you are planning to open a distillery and need 1000l distillery equipment, please contact us.Tiantai will design and provide a complete distillation system for you according to your budget.
