10000L Lauter tun

Description

The 10000L lauter tun is used for filtering and clarifying the sugar liquid (called wort) out of the heated water-malt mixture (called mash) that comes from the mashing tun.

The 10000L lauter tun typically has the same capacity as the cooking tun and can also be made out of stainless steel or copper cladding. It has a design with a false bottom in stainless steel v-wire and a raking gear that has the function of an agitator, a rake and a spent gain remover. This is a very unique and helpful tool because after filtering the spent grains will be removed from the lauter tun, saving a lot of time and energy of the brewmaster. Furthermore the lauter tun can be equipped with additional accessories such as sight glasses, CIP jets for simplifying the lautering.

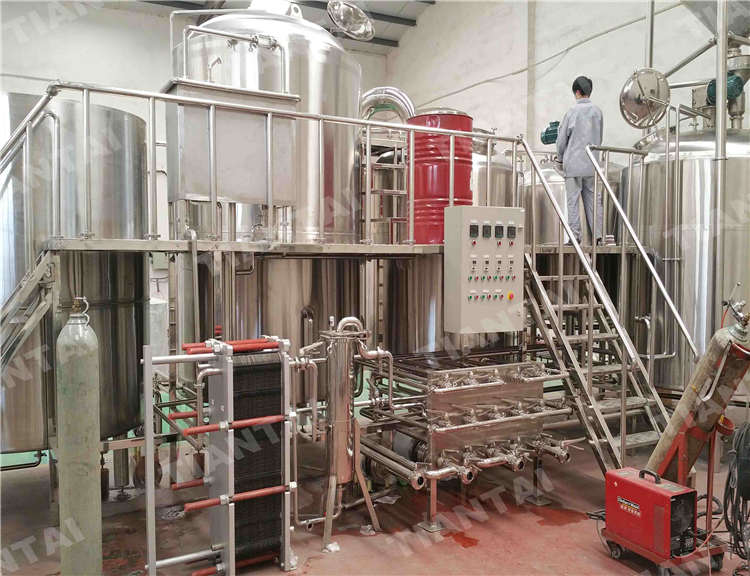

four vessels brewhouse directly fired 20bbl in usa



















Standard Configuration

Function: Lautering
Tank Capacity: 10kL (+25% Headspace minimum)
Dimention: Φ2800mmx4500mm
Interior Shell: SUS304 full welded; TH=4mm
Exterior Shell:SUS304 full welded; TH=2.5mm
100% TIG welding with pure argon gas shield
Interior Finish: Overall polishing to 0.4~0.6 μm without dead corner
Insulation: Rock wool; TH=80mm
Heating: No
Steam Jacket: No
Conical top and flat bottom
Stainless steel top mounted manway
Bottom spent grain cleaning door
360° coverage CIP spraying ball
Grain rake with VFD speed motor and turbine reducer
Easyclean and detachable sparging spray ring
Inline wort lauter sight glass
Laser cutting V-wire False Bottom/Filter
4pcs completely SUS304 heavy duty legs with leveling pad
Thermowell for high accuracy temperature sensor
